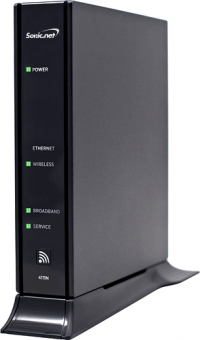

Pace 4111N

Customer Care Team
Updated

Modem Notes

  • 4111N Setup Guide
  • Standard 0/35, syncs on the inside pair, DHCP, routed config.
  • Modem is accessed locally at http://gateway.sonic.net (http://192.168.42.1).
  • The gateway address differs from what you may expect in order to avoid double-NAT issues.
  • There is no power button.
  • "Broadband" light will flash slow when not training, and fast while training. Once it's in sync the light will be solid green.
  • This unit can take 2 minutes to boot up and surf.
  • The default password located on the side of the modem. Prompting for a hint in the web interface indicates which code to use.
  • Changes affecting IP allocation may require a release/renew on the connected computers and potentially a modem reboot.

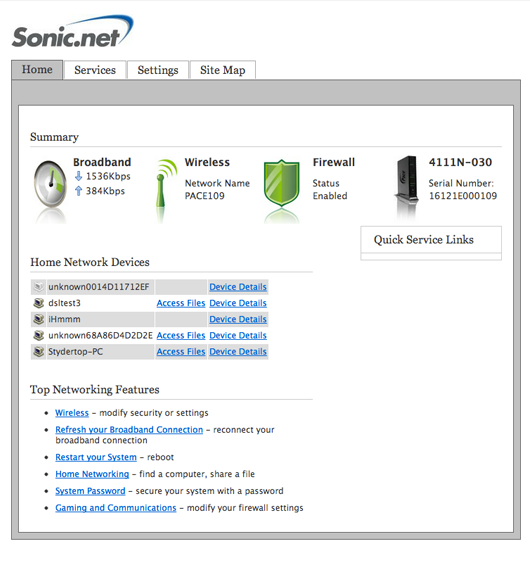

Modem Interface

The modem interface can be accessed though a browser by surfing to http://gateway.sonic.net (or http://192.168.42.1).


Setting up Custom Wifi Name and password

Once you have entered the routers settings you will need to do the following to set up custom a custom Wifi name and password.

  • Click the "Wireless" icon under "Summary"
  • The channel name can be modified under "Network Name (SSID)"
  • Change the  channel name if desired
  • Scroll down to "Wireless Key"
  • Select "Set Custom encryption key" and put in desired password
  • Scroll down until you see a "Save" option on the right



Dynamic IP


This is the standard default configuration.

  • Log into the modem's interface at gateway.sonic.net
  • Click the "Broadband" icon under "Summary"
  • Click "Link Configuration"
  • Under the "Broadband IP Network (Primary Connection)" heading select "Obtain IP address automatically (dynamic IP or DHCP)"
  • Select "Obtain DNS information automatically"
  • Click "Save"



Static IP

  • Log into the modem's interface at gateway.sonic.net
  • Click the "Broadband" icon under "Summary"
  • Click "Link Configuration"
  • Under the "Broadband IP Network (Primary Connection)" heading select "Manually specify IP address settings"
  • Input the IP address, netmask and gateway information provided via email or the Fusion IP address Member Tool.
  • Select "Manually specify DNS information"
  • Input the Primary Server, 50.0.1.1 and Secondary Server, 50.0.2.2, and domain "sonic.net", or settings of your choice.
  • Click "Save"



LAN Subports


LAN Subports allow you to essentially bridge any number of ethernet ports on the modem and allow them to obtain a dynamic or be statically assigned a WAN IP directly from Sonic.net opposed to being assigned a local private NAT address.

For example, you can set ethernet port one as a LAN Subport, then put a router behind it, and that router will either obtain an IP via DHCP from us, or can be assigned one of a circuit's static IPs. If you have static IP service, you will need more than a single static IP for LAN Subports to function, as one IP must be assigned to the modem.

The others in your four or eight IP block can be assigned to devices on one or more of the Ethernet ports which are configured as LAN Subports. Devices connecting to the WiFi or Ethernet ports which are not configured as LAN Subports will be issued a private NAT IP.

  • Log into the modem's interface at gateway.sonic.net
  • Click the "Broadband" icon under "Summary"
  • Click "Link Configuration"
  • Under "LAN Subports" check the "Enable" box
  • Select a LAN port to map to Primary Connection (you can set any port, several of them or all of them)
  • Click "Save"
  • Reboot modem



Bridge mode


This configuration is not recommended or supported. We suggest instead using LAN Subports if you have your own router and prefer that it obtain or be assigned an IP address directly. Note: if you configure your Pace 4111n as a basic bridge, Sonic.net Support staff may need you to reset your modem to its default state for troubleshooting purposes.

If you require technical assistance with your circuit, please reset your settings to one of the above modes before contacting technical support.

  • Log into the modem's interface at gateway.sonic.net
  • Click the "Broadband" icon under "Summary"
  • Click "Link Configuration"
  • Under "Routing" uncheck the box labeled "Enable (Default is enabled. Routing disabled = Bridge mode)"
  • Click "Save"
  • Reboot the modem

Factory Reset

A factory reset will change all gateway settings back to default. To do so:

  • Hold the red reset button on the back of the gateway down for 15 seconds.
  • The Power LED will turn red. After 15 seconds it will turn green again. Let go of the reset button.
  • Allow a couple of minutes for the gateway to reboot.
