The AdTran 822v is an optical network terminal, or ONT. Essentially, it functions as a modem by providing 10 Gigabit Ethernet as well as phone jacks. The ONT is generally located indoors, and must be adjacent to a power outlet. In some cases it's placed in a box on the outside of the home.

Front LED Panel

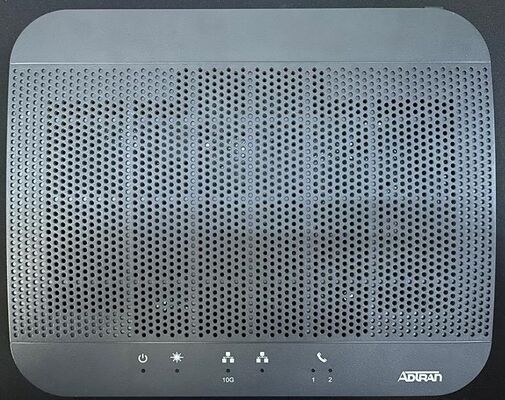

The LED indicators on the AdTran 822v run along the top of the unit.

LED Panel

From left to right

• Power
• Receive Light
• 10Gig LAN
• 1Gig LAN
• Phones 1 & 2

Back Panel Physical Interface (Ports)

Below is a photo of the back panel along with an explanation of each port

From left to right

• WAN: Fiber cable connection
• 12V: Power cable plug
• UPS: A specific plug for certain battery backups.
• Phone 1 & 2: Ports for the phone service. As of right now only one is active.
• GE: Gigabit Ethernet Port
• 10GE: A Gigabit Ethernet Port that supports 10 gig.
• USB: Not used in any supported manner.
• Reset: For Factory resetting

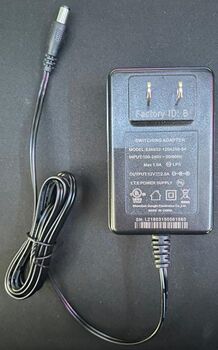

Power Supply

Fairly standard power supply, outputs 12v 2.5A power.
