Adtran 601qv

The Adtran 601qv is an Optical Network Terminal (ONT) we now utilize for our 1gbps Fiber service. The ONT acts as a Fiber Modem and converts the Fiber Optic cable into a connection point for our customers to connect their routers via Ethernet. It also provides an RJ11 port to connect your home phone.

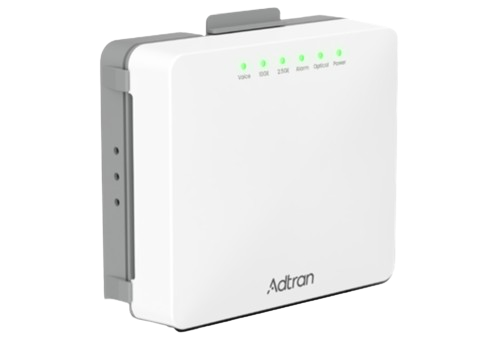

LED Panel :


• Power - Indicates if the ONT is receiving power
• LAN - Indicates that the ONT has an active internet connection
• Optical - Indicates that the ONT is receiving connection from our Fiber Optic cable
• Alarm - N/A
• Voice/POTS - Indicates the ONT has active SIP registration (Phone service is working)

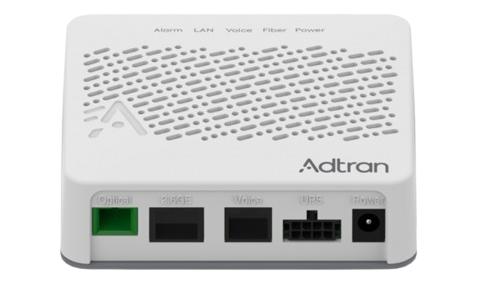

Back Panel (Ports) :

• Optical (Green port)
• Ethernet (2nd port from the left)
• Voice (3rd port)
• Back-Up Battery Port (4th port)
• Power (5th port)
